Overview
The Peltier Gas Cooler CS-5A is designed for sample gas conditioning in gas analysis systems such as CEMS (Continuous Emission Monitoring Systems).
It cools high-temperature and high-humidity sample gas through semiconductor (Peltier) cooling technology, enabling efficient moisture condensation and removal. This ensures that the gas entering the analyzer is dry, stable, and suitable for accurate measurement.
With its compact single-channel design and precise temperature control, the CS-5A is ideal for applications requiring reliable and continuous gas analysis.
Model Comparison
Swipe across the table to compare models.
Choose the right model based on channel configuration, power, and installation requirements.
| Model | CS-5A | CS-7A |
|---|---|---|
| Channel Configuration | Single Channel | Dual Channel |
| Flow Rate | 10 L/min | 10 L/min total across both channels |
| Max Inlet Temperature | ≤ 60°C | ≤ 60°C |
| Cooling Chamber Temperature | 0–10°C (adjustable) | 0–10°C (adjustable) |
| Dew Point | ≤ 5°C | — |
| Power | 120 W | 150 W |
| Voltage | 220V AC | 220V AC |
| Rated Current | 0.55 A | — |
| Pressure | ≤ 0.2 bar | — |
| Dimensions | 216 × 213 × 125 mm | 240 × 127 × 290 mm |
| Weight | 5kg | 6 kg |
| Recommended Use | Compact single-point gas analysis / CEMS | Dual-channel gas sampling / CEMS systems |
• For compact single-channel gas conditioning → CS-5A
• For dual-channel gas sampling systems → CS-7A
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CS-5A |
| Product Type | Peltier Gas Cooler |
| Channel | Single Channel |
| Rated Voltage | 220V AC |
| Rated Current | 0.55 A |
| Rated Power | 120 W |
| Flow Rate | 10 L/min |
| Outlet Dew Point | ≤ 5°C |
| Rated Pressure | ≤ 0.2 bar |
| Gas Inlet Connection | Φ6 |
| Gas Outlet Connection | Φ6 |
| Drain Outlet Connection | Φ5 |
| Drainage Method | Peristaltic Pump |
| Max Inlet Temperature | ≤ 60°C |
| Cooling Chamber Temperature | 0–10°C (Adjustable) |
| Drainage Time | 0–9999 s (Adjustable) |
| Dimensions | 216 × 213 × 125 mm |
| Installation Hole Size | — |

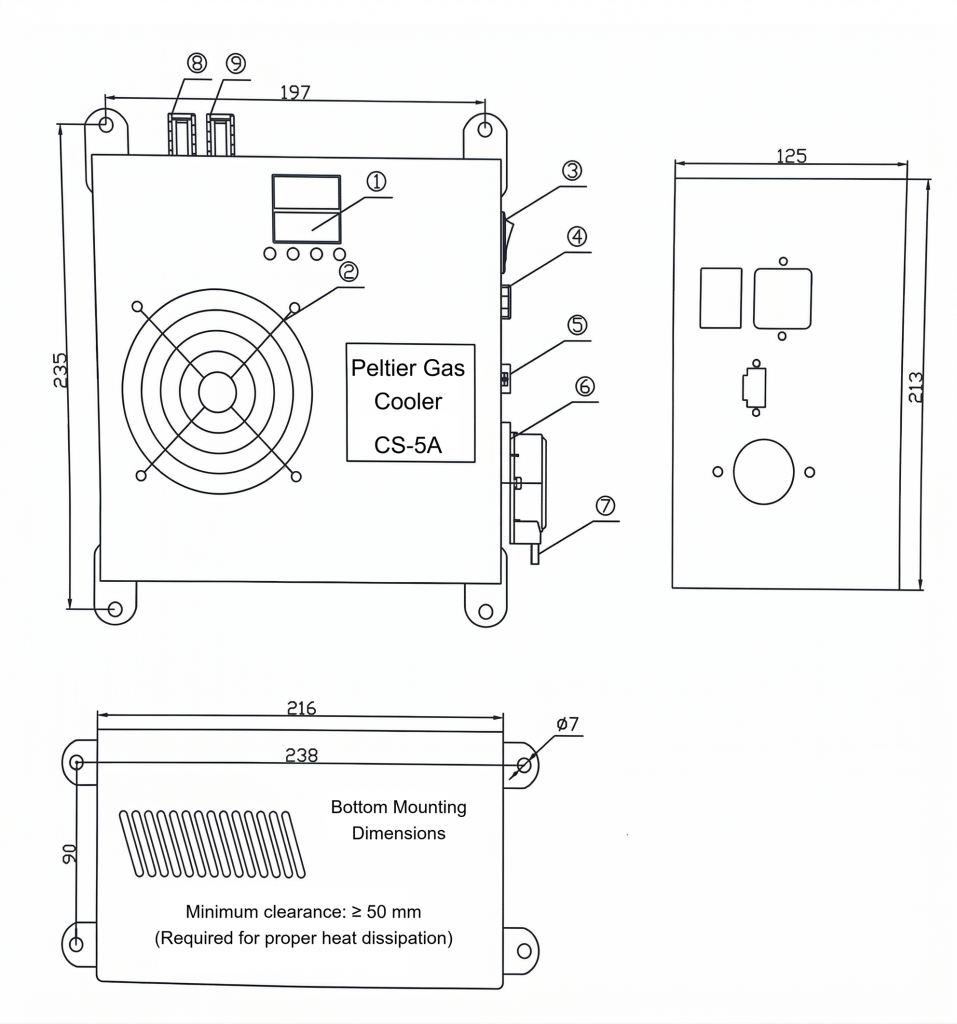

Dimensions & Installation
Key Components
1. Temperature Display: Shows the temperature inside the cooling chamber.
2. Cooling Fan: Dissipates heat from the condenser.
3. Main Power Switch: Controls the overall power supply of the unit.
4. Power Input (220V AC): Main electrical power connection.
5. High Temperature Alarm Output: Normally Closed (NC)
6. Peristaltic Pump: Removes condensate from the cooling chamber.
7. Drain Outlet: Outlet for condensed water from the cooling chamber.
8. Gas Outlet: Outlet for conditioned (cooled and dehumidified) gas.
9. Gas Inlet: Inlet for sample gas to be cooled and conditioned.
Installation Requirements
Proper installation is essential for optimal performance:
- Install in a clean, dry, and well-ventilated environment
- Avoid exposure to high temperature or direct sunlight
- Ensure stable mounting to prevent vibration
- Keep sufficient space for airflow and heat dissipation
- Connect power supply correctly (220V AC)
- Ensure all gas connections are properly sealed
- Regularly check drainage system for proper operation
Applications
The Peltier Gas Cooler CS-5A is widely used in:
- CEMS (Continuous Emission Monitoring Systems)
- Power plants
- Chemical processing plants
- Cement production
- Steel and metallurgy industries
- Marine emission monitoring systems
- Environmental monitoring systems
Why Sample Gas Needs Cooling
In gas analysis systems, sample gas is often hot and saturated with moisture.
Without proper cooling and condensation:
- Moisture can damage analyzers and sensors
- Measurement accuracy can be significantly reduced
- Condensation may occur inside pipelines and instruments
- System stability and reliability are compromised
The Peltier Gas Cooler CS-5A removes moisture at the source by cooling the gas and condensing water vapor into liquid, ensuring optimal conditions for downstream analysis.
How It Works (Peltier Cooling Technology)
The CS-5A uses semiconductor (Peltier) cooling to rapidly reduce the temperature of incoming sample gas.
The process works as follows:
- Hot and humid sample gas enters the cooling chamber
- The Peltier module lowers the temperature of the chamber
- Water vapor condenses into liquid droplets
- Condensed water is removed via a built-in peristaltic pump
- Dry and stable gas exits to the analyzer
This physical condensation process ensures efficient moisture removal without the need for complex drying systems.
Project support
CE certified. Used by universities and industrial clients. OEM / ODM customization available.
Need Bulk Pricing or Custom Solutions?
For larger orders, custom requirements, or project-based applications, please contact our team for a tailored quotation and technical support.
